Overboard Slim 12 Light -Tile

List Price: £19.65 + VAT

Product Code: TB720

Overview

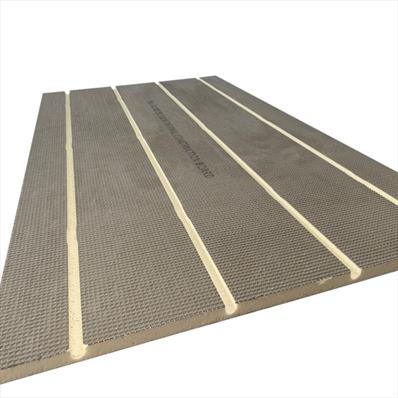

Our Overboard tile is a light weight insulation panel with the same properties of the Overboard Slim 12 but the foil faced insulation covering has been replaced with a cement skim so tiles can be laid directly on top. The product has straight grooves only so overboard returns (OBWMB18R) are needed to complete the installation.

The insulation panel is sandwiched between two cement skim layers similar to tile backer board. The panel is fixed down with tile adhesive on top of either solid or timber floors. The tile can be installed on top creating a solid movement free floor.

    Technical Spec

    • Best suited for FlexiPex 12mm Pipe
    • Maximum Outputs :- 55w/m2
    • Flow Temperature :- 48 - 60°c
    • For high temperature heat sources

    INSULATION TECHNICAL DATA

    • Extruded Polystyrene - Grade XF250 ( BS EN 13164) Grooved at 150mm Centres for 12x2mm Lux FlexiPex
    • Thermal Conductivity: 0.033 W/mK
    • Compressive Strength: 300kPa @ 10% Compression
    • Fire Classification: Euroclass E
    • Board Size:1200 x 600 x 20mm
