Luxusheat Single Room Profix Pack 150mm c/c 0-12m2

List Price: £762.11 + VAT

Product Code: LUXSRMPK12PF

Enquire about this product

Overview

Room Pack Summary
We believe underfloor heating should be quoted and designed on a project by project
basis. The means that we can accurately estimate the materials required for the areas
minimising construction waste. We can also make sure that the heating system is as
efficient as possible when designing each project individually.
We therefore do not offer large “multi-zone” kits, if there is more than one thermostat
and the system size is over three manifold ports (three loops) then we would prefer to
quote the project and send a detailed bespoke quotation.
Single Room Profix Pack at 150mm Centres 0-12m2
Single Room, one zone pack designed to be plumbed into an existing radiator system, when the radiators are on heat is supplied to the manifold. The pump and blending pack has an integral temperature switch so when the water temperature from the boiler reaches 40c the contact closes and the underfloor heating pump starts circulating water through the underfloor heating loop. (Not suitable for microbore heating systems, please call us for pipework design suggestions.)
*Please note that not air temperature controls are supplied with the kit. If air temperature controls are required, then please see the options available in the air temperature controls section. Please be aware that a 2 port motorized valve may also be required.

Technical Spec

Luxusheat Profix Panel

The Profixâ„¢ Panel is a revolutionary pipe retention system, which provides a very quick to install and simple to use solution for a wide range of floor heating, wall heating or ceiling cooling applications. The Profixâ„¢ Panel, when combined with a low profile quick drying self-levelling screed and a warm water underfloor heating system, provides a unique low thickness / high heat output floor heating solution for both new build and retrofit projects. This revolutionary new system can deliver high heat outputs even at relatively low water temperatures, which makes it an ideal solution for use with heat pumps. The total height of the underfloor heating system is 15mm including the 12mm FlexiPex.

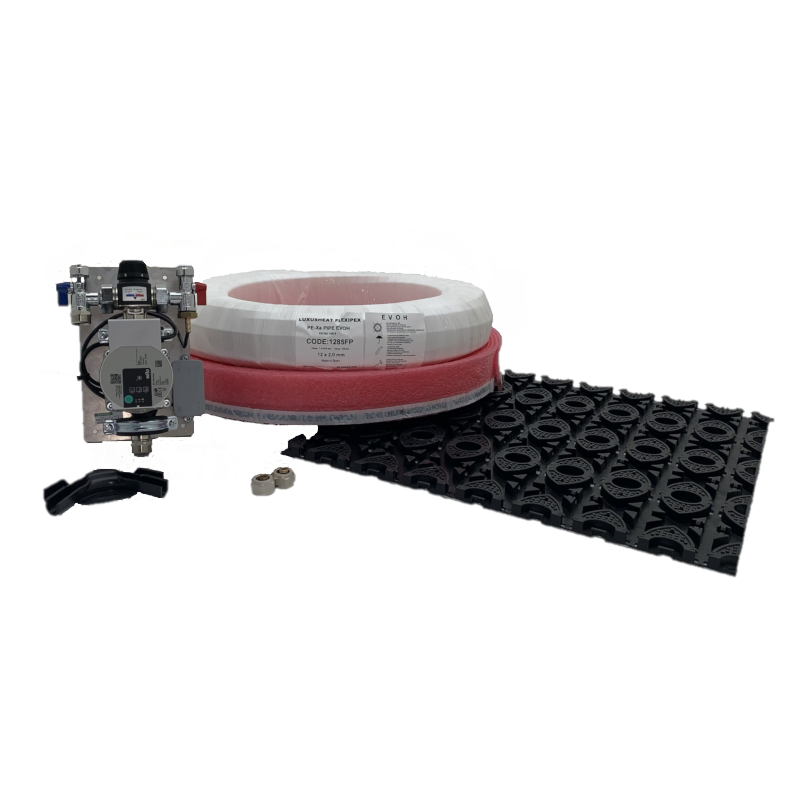

Pack Contents Include:

1x Luxusheat FlexiPex 12x2.00mm Pipe (85m)
2x 12mm x 3/4" Eurocone Pipe Connector
2x Luxusheat Plastic Bend 12mm
1x Water Temperature Control Pack (Single Room)
35x Profix Panel (600mm x 600mm)
1x Profix Edge Strip (50m)
