ProfixPLUS Panel

Overview

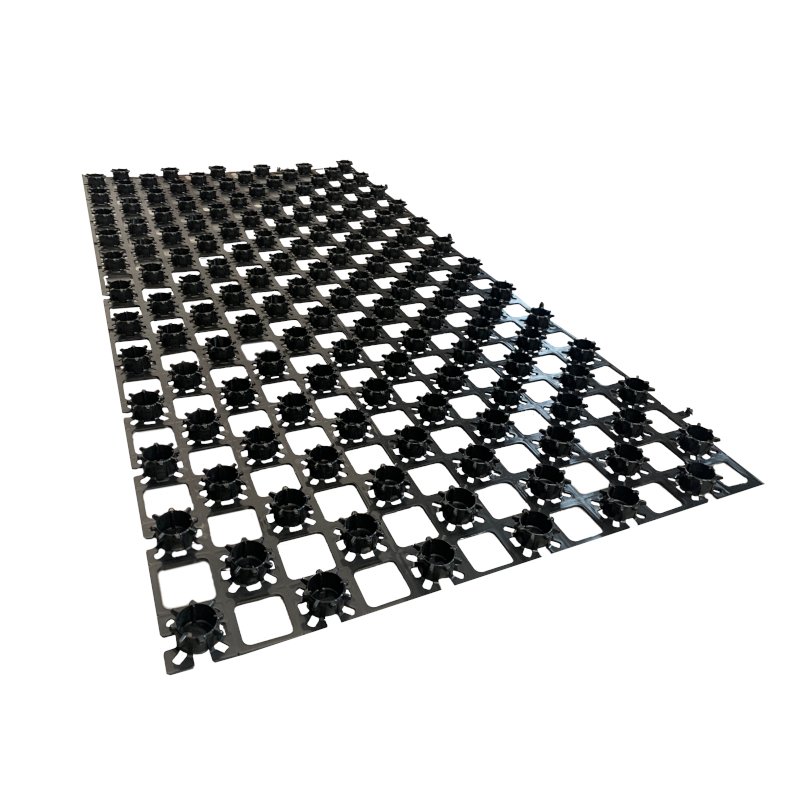

Luxusheat's ProFix Plus Panel

The Profix PLUS panels takes our 16mm diamenter pipe enabling market leading heat outputs and response times to be achieved, even at low water temperatures. In combination with heat pumps, they meet the primary objective of the Future Homes Standard to provide a future-proofed low carbon heating solution to help bring the UK's greenhouse gas emissions to net zero by 2050.

Technical Spec

1200mm x 600mm x 20mm
Low Profile screed thicknesses from 20mm
For 16mm MLC or FlexiPEX Pipe

Mininum Screed Thicknesses

Cement Based Flowing Screed

Floor Finish	Sub-Floor Solid	Sub-Floor Insulation
Engineered Wooden Floor (min 14mm Thickness)	20mm	30mm
Tiles - Porcelain, ceramic, and natural stone etc.	20mm	30mm
LVT - Luxury Vinyl Tile 25mm 30mm	25mm	30mm
Wood Laminate	25mm	30mm
Carpet & Underlay	25mm	30mm

Anhydrate (Gypsum) Based Flowing Screed

Floor Finish	Sub-Floor Solid	Sub-Floor Insulation
Engineered Wooden Floor (min 14mm Thickness)	25mm	35mm
Tiles - Porcelain, ceramic, and natural stone etc.	25mm	35mm
LVT - Luxury Vinyl Tile 25mm 30mm	30mm	35mm
Wood Laminate	30mm	35mm
Carpet & Underlay	30mm	35mm
