Luxusheat Overboard - Slim 12 Light
Overboard 12 Slim
  • Luxusheat Overlay Light Slim 12
  • Overboard 12 Slim

Luxusheat Overboard - Slim 12 Light

List Price: £22.34 + VAT

Product Code: OBXPS

Overview

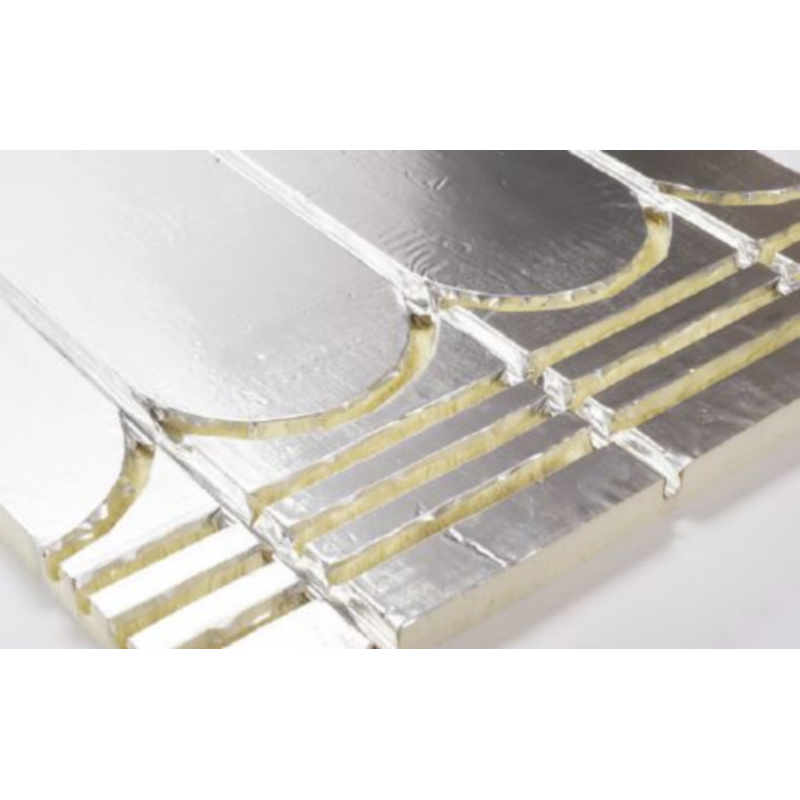

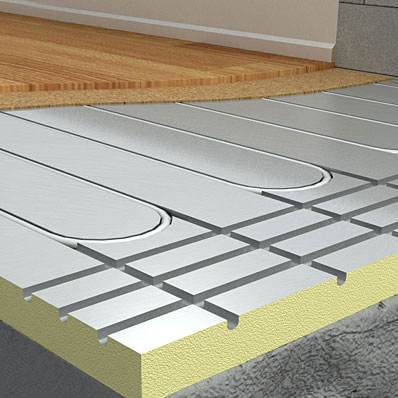

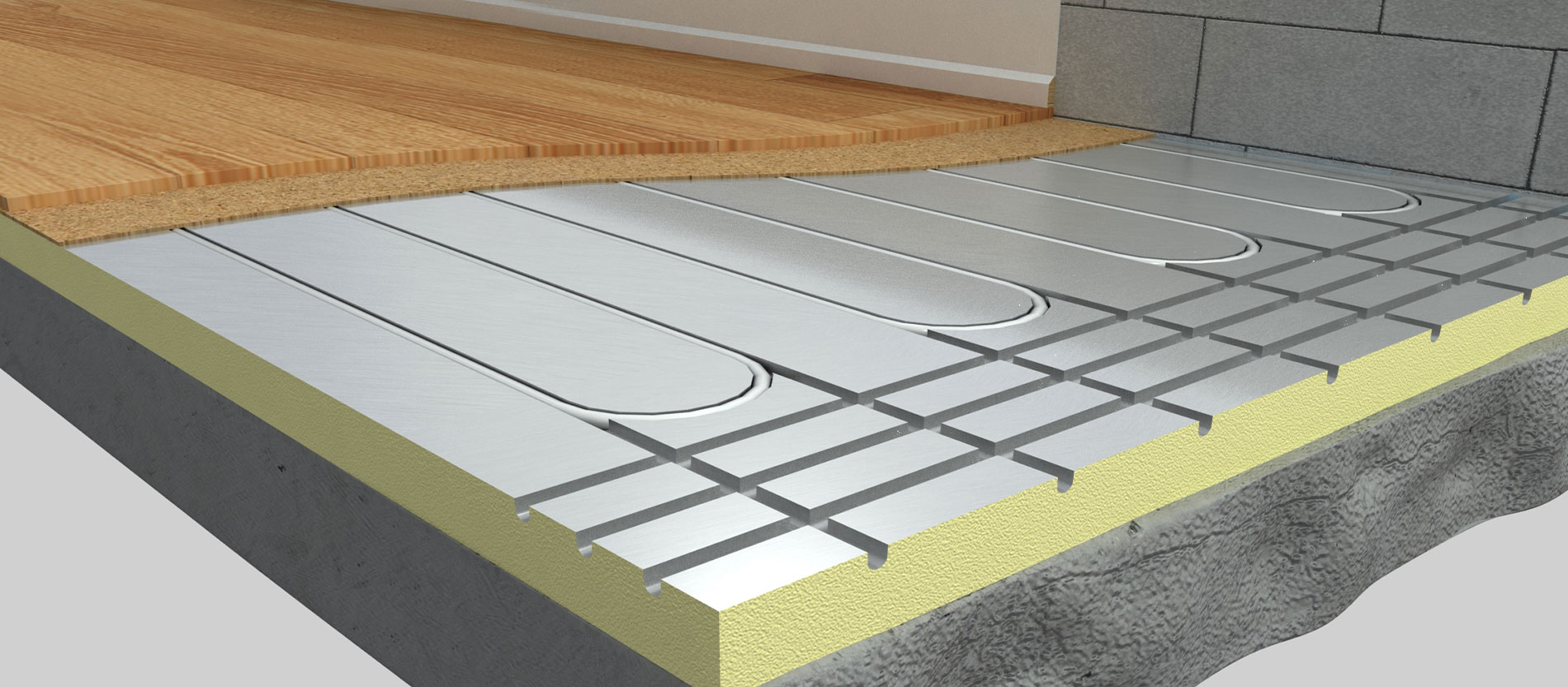

This is an ideal system for retrofitting underfloor heating, or as an alternative to screed floors. The system can also be installed when underfloor heating was not considered at the design stage and the insulation and concrete slab has already been laid. The high grade extruded XF pregrooved and foil faced insulation can be laid on top of any sub floor with the final floor finish “floated” on top. The grooves accept 12mm pipe (usually FlexiPex) at 150mm centres and the boards come complete with end returns and feeder runs so there is no need to purchase additional items.

Technical Spec

• Best suited for FlexiPex 12mm Pipe
• Maximum Outputs :- 70w/m²
• Flow Temperature :- 45 – 58°c

INSULATION TECHNICAL DATA

Expanded Polystyrene - Grade XF250 ( BS EN 13164 )
Grooved at 150mm Centres for 12x2mm Luxus FlexiPex
Aluminium Foil thickness: 45 Microns
Thermal Conductivity: 0.033 W/mK
Compressive Strength: 250kPa @ 10% Compression
Fire Classification: Euroclass E
