Luxusheat ESBE CRA Actuator

Luxusheat ESBE CRA Actuator

List Price: £358.00 + VAT

Product Code: CRA115

Overview

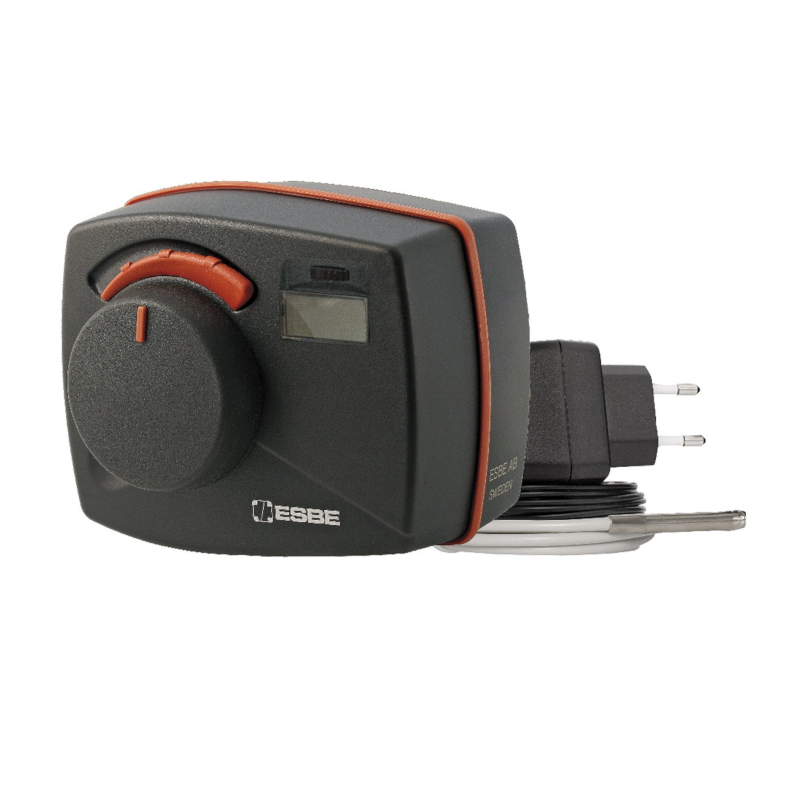

Luxusheat's ESBE CRA115

Constant flow temperature controller for applications where a constant water temperature is required. Temperature settings is done by an easy-to-use joystick and display interface. The compact controller is designed for operating rotary valves DN 15-50 and has an operating range of 90°. The series can easily be manually operated by the pull-and-turn knob on the front of the cover.

Technical Spec

Technical data

Ambient temperature,max.: +55 °C
min.: -5 °C
Temperature range,Flow pipe sensor: +5 to +95°C
Enclosure rating:IP41
Protection class:II
Power supply,24V: 24±10% VAC, 50/60 Hz
230V: 230±10% VAC, 50 Hz
Power consumption,24 VAC: 3 VA
230 VAC: 10 VA
Torque:6 Nm
Running time at max. speed:30 s
Weight:0.4 kg
