Luxusheat Single Room Timber Joist Pack 200mm c/c 0-20m2

Luxusheat Single Room Timber Joist Pack 200mm c/c 0-20m2

List Price: £829.59 + VAT

Product Code: LUXSRMPK20TS

Enquire about this product


Room Pack Summary
We believe underfloor heating should be quoted and designed on a project by project
basis. The means that we can accurately estimate the materials required for the areas
minimising construction waste. We can also make sure that the heating system is as
efficient as possible when designing each project individually.
We therefore do not offer large “multi-zone” kits, if there is more than one thermostat
and the system size is over three manifold ports (three loops) then we would prefer to
quote the project and send a detailed bespoke quotation.
0 - 20m2 - Timber Suspended Pack at 200c/c.
Single room, one zone pack designed to be plumbed into an existing radiator system, when the radiators are on
heat is supplied to the manifold. The pump and blending pack has an integral temperature switch so when the water
temperature from the boiler reaches 40°C the contact closes and the underfloor heating pump starts circulating water
through the underfloor heating loop. (Not suitable for microbore heating systems please call us for pipework design
*Please note that no air temperature controls are supplied with the kit. If air temperature controls are required, then please see the options available in the air temperature controls section. Please be aware that a 2 port motorized valve may also be required.

Technical Spec

Luxusheat Timber Suspended - Emission Plates

UFH pipework can be laid between the timber joists with the help of emission plates. The plates are generally designed for suspension over joists at 400mm centres and are manufactured with grooves set at 200mm centres. However we manufacture many sizes so please refer to the Timber Suspended Plates option on our website for further information.

We recommend that insulation is placed below the emission plates, rigid foil faced floor insulation boards or rock wool to avoid air pockets and aid thermal performance of the floor.

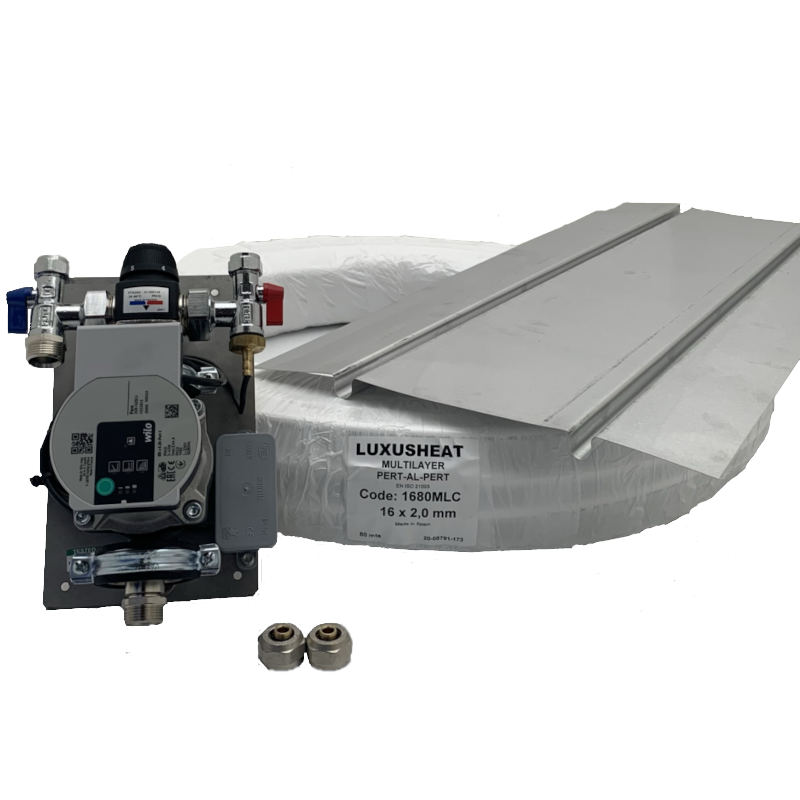

Pack Contents include:

1x Luxusheat (UFH Only) 16x2.00mm Pipe (100m)
2x 16mm x 3/4" Eurocone Pipe Connector
1x Water Temperature Control Pack
41x Luxusheat Snap Heat Plate (1000x390x0.5mm)
