Luxusheat Single Room Screed Pack 150mm c/c 0-22m2 (Without Control Set)

List Price: £599.28 + VAT

Product Code: LUXSRMPK22HP

Enquire about this product

Overview

Room Pack Summary
We believe underfloor heating should be quoted and designed on a project by project
basis. The means that we can accurately estimate the materials required for the areas
minimising construction waste. We can also make sure that the heating system is as
efficient as possible when designing each project individually.
We therefore do not offer large “multi-zone” kits, if there is more than one thermostat
and the system size is over three manifold ports (three loops) then we would prefer to
quote the project and send a detailed bespoke quotation.
Single Room Screed Pack at 150mm Centres 0-22m2
These Packs are for when a low temperature heat source is used (Heat Pump). So the pipe centres are at 150mm and there isnt a manifold blending valve. The kit comes complete with pipe and fixings, pump, pump valves, 2 port valve & by-pass and should be installed with a dedicated flow and return from the heat source.
*Please note that not air temperature controls are supplied with the kit. If air temperature controls are required, then please see the options available in the air temperature controls section. Please be aware that a 2 port motorized valve may also be required.

Technical Spec

Luxusheat Screed System - Clips

Using the Luxusheat Prostaple gun, simply clip the pipework directly through the slip membrane to the floor grade insulation. The clips comes in two lengths of 40mm and 60mm and hold the pipework fastened during the screeding process. This is a tried and tested, cost effective solution with high outputs.

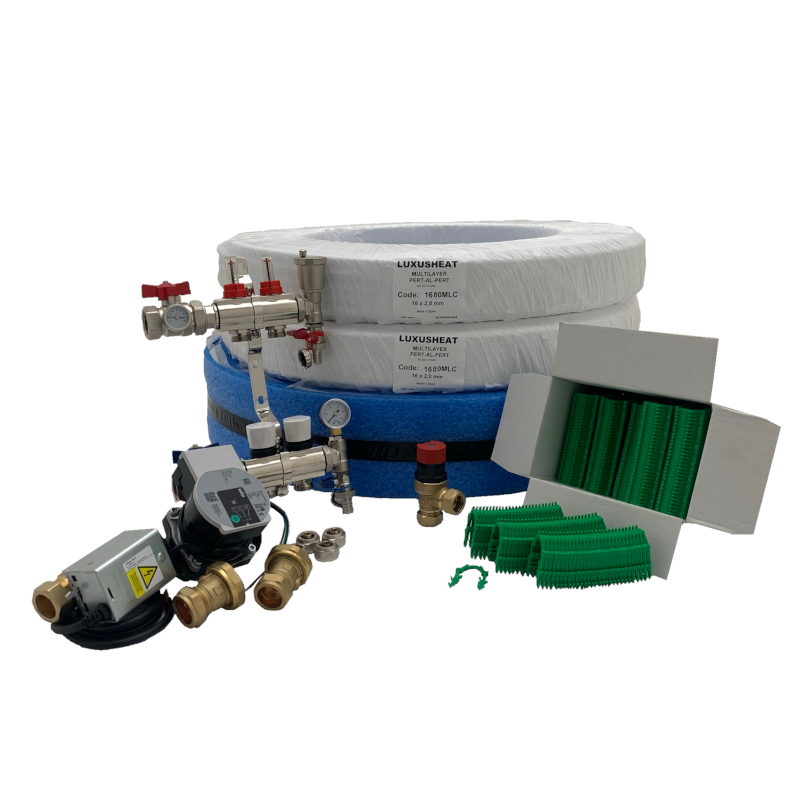

Pack Contents Include:

2x Luxusheat (UFH Only) MLC 16x2.00mm Pipe (80m)
1x Luxusheat 2 Port Manifold (Lock Shield Valves)
4x 16mm x 3/4" Eurocone Pipe Connector
1x Honeywell By-Pass Valve
1x Honeywell 22mm Two Port Motorized Valve
1x Luxusheat Wilo Pump RS 25/6
1x Luxusheat 28mm Pump Valve (Pair)
1x Luxusheat Screed Floor Edge Strip (50m)
1x Luxusheat Prostaples 60mm (Box 600)
