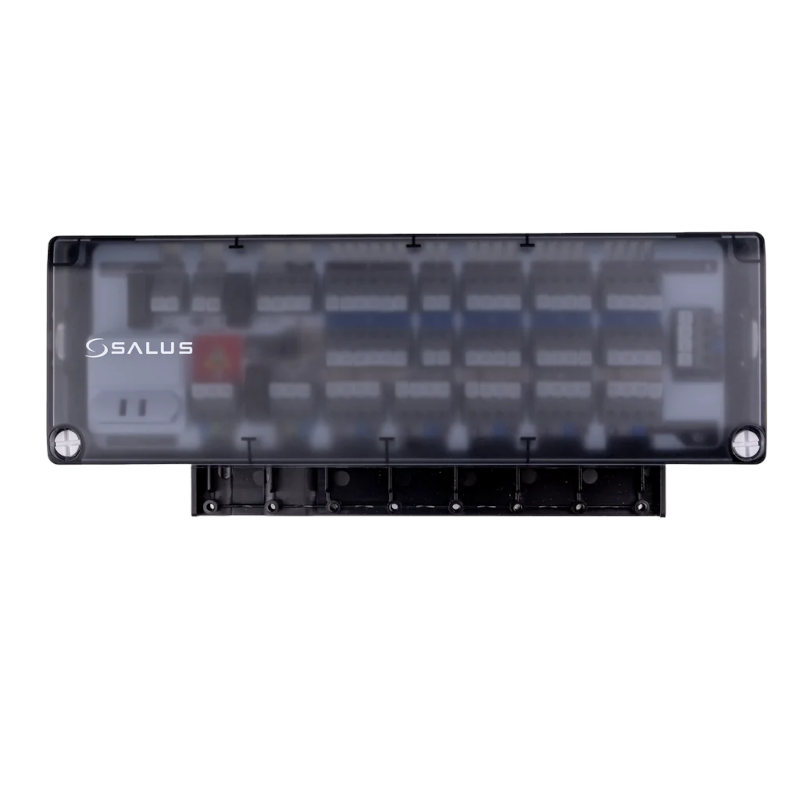

Salus CB500 5 Zone Wiring Centre Master

Salus CB500 5 Zone Wiring Centre Master

List Price: £63.02 + VAT

Product Code: CB500


The CB500 control box has a built-in module that controls the heat and cool sources. The control box allows you to control 5 different zones. Number of controlled zones can be increased up to 15 zones by using additional CB500X extension modules (CB500 main control box + two CB500X extension modules). Each individual zone can be operated by one thermostat. Thermostat which require 230V power supply has to be powered directly from control box. The CB500 has voltage-free outputs designed to control a boiler, heat pump or chiller. It allows you to switch between heating and cooling modes. It is equipped with 230V voltage outputs for a pump and actuators. The spring clamps provide quick and convenient wiring connections. The control box is designed to work with NC (normally-closed) type actuators. It is recommended to mount it on a surface or on a DIN rail.

Technical Spec

Power Supply 230 V AC 50 Hz
Total Load Max 7 (2) A
Pump / Boiler / HP (Chiller) Relay Load Max 5 (2) A
Inputs Heating / Cooling modes change (volt free)
Dew point sensor
Outputs Boiler control output (volt free)
Heat Pump / Chiller control output (volt free)
Pump control (AC 230V)
Actuators (AC 230V)
Dimensions [mm] 270 x 110 x 55
